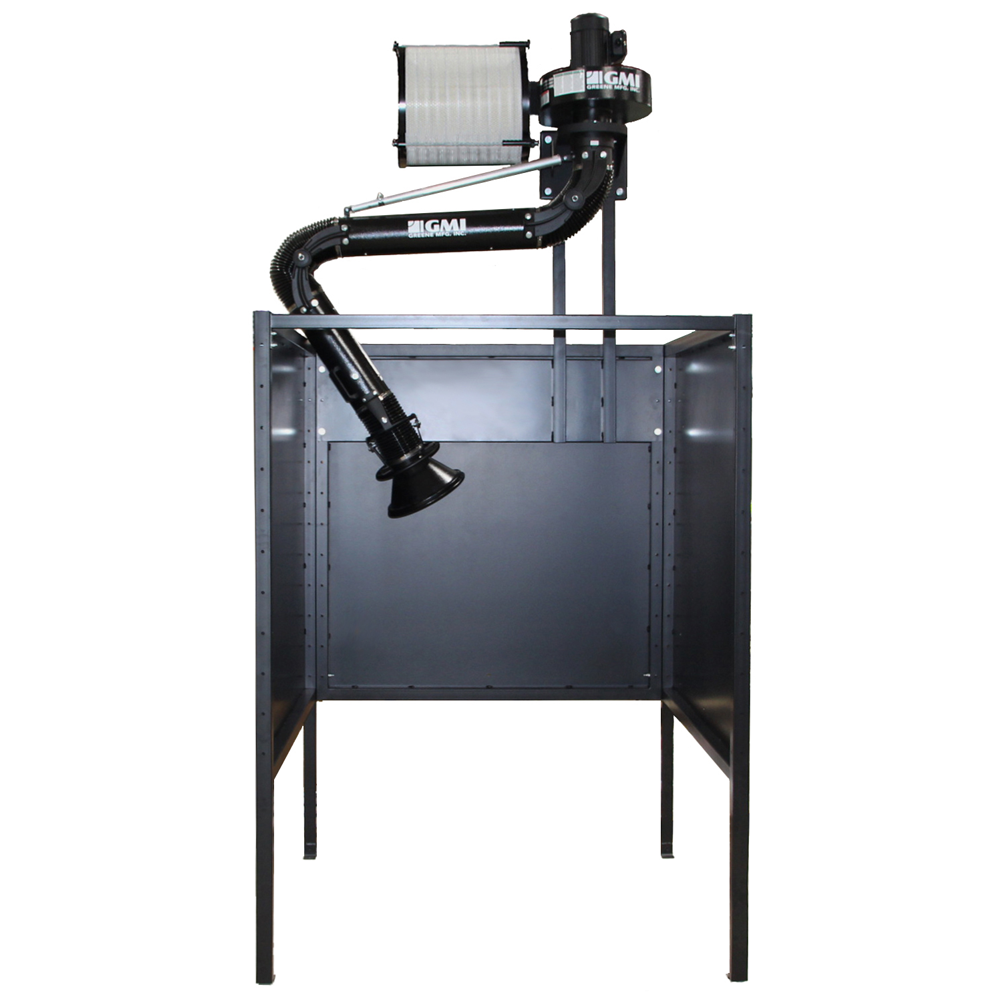

BOOTH WITH POWERED/FILTERED ARM & TABLE
•Free Standing 5’x5′ Booth
•Package: Booth, Powered/Filtered Vent
Arm, Arm/Filter Mounting Bracket, and Welding Table.
•Sold in Starter and Add-On Units
$7,685.00 – $225,720.00
Guarantee Safe & Secure Checkout
- Shipping included in most cases
- All returns must be authorized prior to shipping
- See terms for more details
Description
Description
Engineered for welding education and training, our Modular Welding Booths provide a safe, enclosed environment that protects students and nearby personnel from arc flash exposure. Each booth is constructed with a 2″ heavy wall steel tube frame and fully welded 12-gauge steel panels, ensuring long-lasting durability in high-use environments.
Package Includes:
• 5′ x 5′ Booth
• 1.5hp Fume Arm Filtration Unit
• 6″ Dia. Fume Arm
• Filter & Arm Mounting Bracket
• Steel Welding Table – Rear Wall Mounted
Booth Specifications:
• Overall Individual Booth Size: 60”W x 60”D x 84”H
• 2” Sq. Heavy Wall Tube Steel Frame/Legs.
• 12ga Steel Panel – All Welded.
• Adjustable Floor Anchor Pads.
• Free Standing Booths Only.
• Starter Units: 2 Sides / 1 Back Panel.
• Add-On Unit: 1 Side/ 1 Pack Panel.
• Stocked in Mat Black Finish Only.
Fume Extractor/Filter Specifications:
• 1.5 hp Motor
• 900 CFM (Draw for 6” Dia Arm)
• Duct Connection – 6” Dia
• Power Supply Connection (110v or 220v / 60hsz / 1PH)
• Filter (1) – Merv 15 Rated
Fume Arm Specifications:
• 7ft Long / 6″ Dia. – Powder coated smooth tube vent arm.
• External joints and supports provide unrestricted airflow.
• Flexible joints rated to 195F.
• Full ring hood & tube grab handles.
• Lever controlled, built-in air damper
Informational Industry Welding Information:
www.aws.org
www.osha.gov
www.nfpa.org
www.ewi.org
Additional information
Additional information
| Booth Size/Model | GMB-KT-1 S-PWR: 1 Starter Booth, GMB-KT-1 A-PWR: 1 Add-On (Requires Starter), GMB-KT-1 10PK-PWR: 1 Starter / 9 Add-Ons, GMB-KT-1 20PK-PWR: 2 Starters / 18 Add-Ons, GMB-KT-1 30PK-PWR: 2 Starters / 28 Add-Ons |
|---|
